- Size: 8100x3050x3400mm
- Place of Origin: CHINA
- Brand Name: SHACMAN
- Model Number: STL3401
- Weight: 18000.000 kg

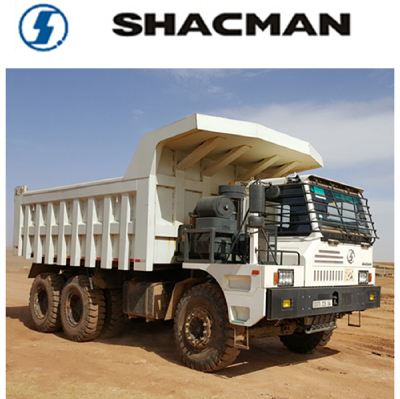

SHACMAN 40T OFF ROAD MINING DUMP TRUCK, TIPPER TRUCK, CUMMINS ENGINE MODEL
Product Highlights:
1. The multi-functional Combination instrument panel, adjustable steering wheel, Clutch booster, power steering and flexible shaft speed control can ensure its operation comfort and safety.
2. Desert-oriented air filter and fuel three-level filter can extend its routine maintenance cycle under the harsh working environment at construction sites.
3. The fuel preheating device, base plate heating device and other optional devices can be configured to meet the requirements of its use in alpine regions.
4. The extra-large cab space,as well as rich and legible instrument panel information, embodies the principle of human engineering.
Brief specification:
| cabin | single mining cabin, left hand drive/right hand drive |
| Engine | CHINA CUMMINS ISME 345, 345HP |
| Transmission | Fast Fuller transmission 9 gears |
| Front axle | MAN 10T Loading capacity |
| Rear axle | MAN 18T Loading capacity |
| Frame | Double frame,enanced structure |
| brake system | double-circle pneumatic brake with auto adjustment, parking brake and JACOB brake |
| Filter | three-stages desert air filter |
| fule tanker | 380L capacity |
| Tire | 12.00-20 option 13.00-20 |
| bucket inner dimension | 5000x2500x1400mm |
| bucket board thickness | floor 12mm, side 8mm, material 16Mn |
| lifting type | Front lift |
| Steering | ZF 8098 |
| Clutch | 430 diameter |
| with one spare tire | |
| with central lubrication system |
Please contact me for more details and best price.
Mr. Vincent Leonardo
Mobile: +86-15275144907 (whatsapp/Viber)
Email: shacmanore@163.com
- Size: 8100x3050x3400mm
- Place of Origin: CHINA
- Brand Name: SHACMAN
- Model Number: STL3401
- Weight: 18000.000 kg
