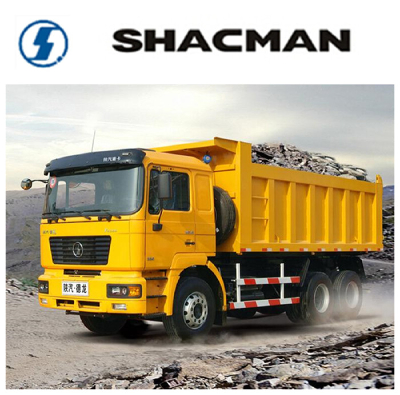

SHANNXI AUTO GROUP SHACMAN 6X4 15T DUMP TRUCK/TIPPER TRUCK

1.The F2000 Series is based on the STYER Chassis and GERMAN Giant MAN group technology, equipped with WEICHAI powered engine ranging from 336hp to 430hp.

2. The tranmission brands are from FAST, ALLISON and ETON in both Automatic and Manual.

3.The F3000 Series can satisfy the needs of all customers under any working conditions.

Model SHACMAN F2000   SX3254JS384

Engine:Make:WEICHAI, CHINA

Engine model: WD12.336,  336hp engine  Euro II emission standard

                      4 stroke direct injection diesel engine

                     6 cylinder in-line with water cooling, turbo-charging & intercooling

                     Maximum output: 336hp(247Kw)at 2200 rpm according to DIN

                     Maximum torque: 1350Nm at 1300~1600 rpm

                     Bore: 126mm;  Stroke: 155mm;

                     Displacement: 11.596L;

Transmission: FAST FULLER  9JS135(RTD11509C)    9F/1R

Front Axle:   MAN 7500KG

Rear Axles:  STR13 2X13000KG

Chassis: Parallel straight ladder structure of C type section 300x80x(8+7)

Steering: MAN ZF8098, Integral circulating ball power steering

Brakes:  Service brake: dual circuit compressed air brake

              Parking Brake(emergency brake): power spring brake acting on rear wheels

              Auxiliary brake: WEVB  (engine exhaust valve brake)

Wheel & Types: Rims: 8.5-20, 10 hole-steel   Types 12.00-20 tube

Option: 11.00-20 tube, 12.00R20 tube  315/80R22.5

Driver ’ s cab : MAN F2000 standard cabin

                    with 2 rear windows, mechanical sunroof, hydraulic suspension of cab,

                    hydraulic driver seat with seatbelts, hydraulic reversal, air condition,

Wheel base : 3800+1350mm

Overall Dimension: 8275 × 2496 × 3300 (mm)

Cargo body size: 5400 × 2300 × 1200(mm)

Dead weight: 11200kg

Loading capacity : 15000~20000kg

Lifting type: Middle lift

Please contact me for more details and best price.
